CADViewer, with it’s flexible design and use of standard toolkits, can be integrated with any Data Management Application and be used with a multitude of custom data-driven applications.
Generic flow of CADViewer on top of an Application Stack
CADViewer provides JSON interfaces, so it can seamless blend in with any legacy back-end application stack. In the Commercial Real Estate sample below, AutoCAD source files are dynamically updated when a Tenant or other business information related to a space changes.
A process is applied which then updates the content of the front-end display to reflect the status of the back-end. At the same time, the back-end updates a number of JSON files that the front-end absorbs in the display situation. Thereby the front-end always reflects the actual status of the Tenant and their business metrics.
Architecture of CADViewer AI System
In CADViewer AI system, we apply a geometrical algorithm to be able to determine distances between any given Space/Storefront and which spaces are adjacent to any given space. The LLM is used to give users the ability to ask meaninful questions.
The business data is kept from the LLM, but in a local closed environment the LLM can be used on the business data. The CADViewer AI system then combined the structured responses on the AI query with any business data provided as well as the geometrical properties of the floorplan to give answers as highligt on the floorplan with a selection of business data.

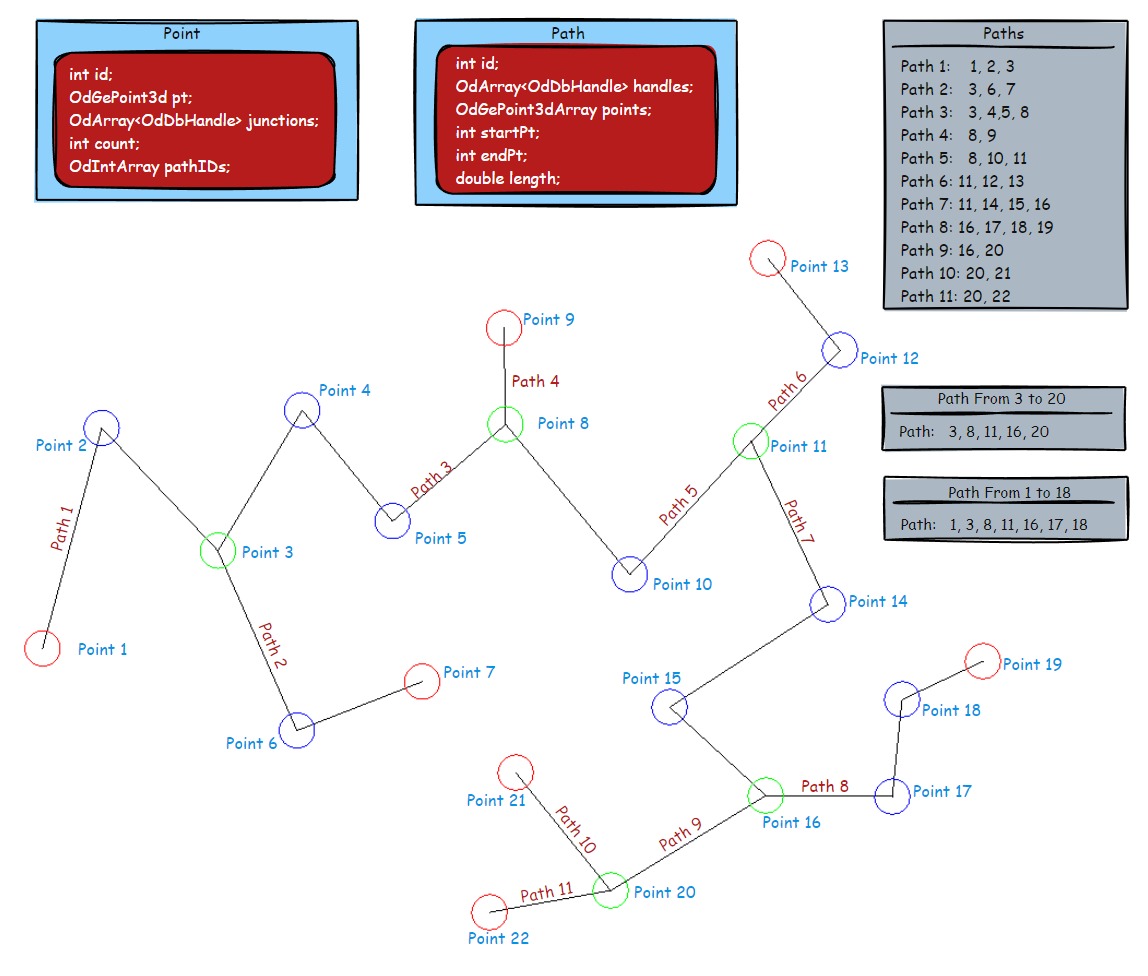

Geometrical Algorithm
Our geometrical algorithm process processes all distances between any given object in a floorplan.
Through our API or directly in CAD system, the user adds walking paths, as well as blocking path if a detour is forced because of a wall or other objects. The process produces a JSON which is then used together with the response from an AI query to provide and highlight a meaningful result.
Sample geometical AI Query against Business Data

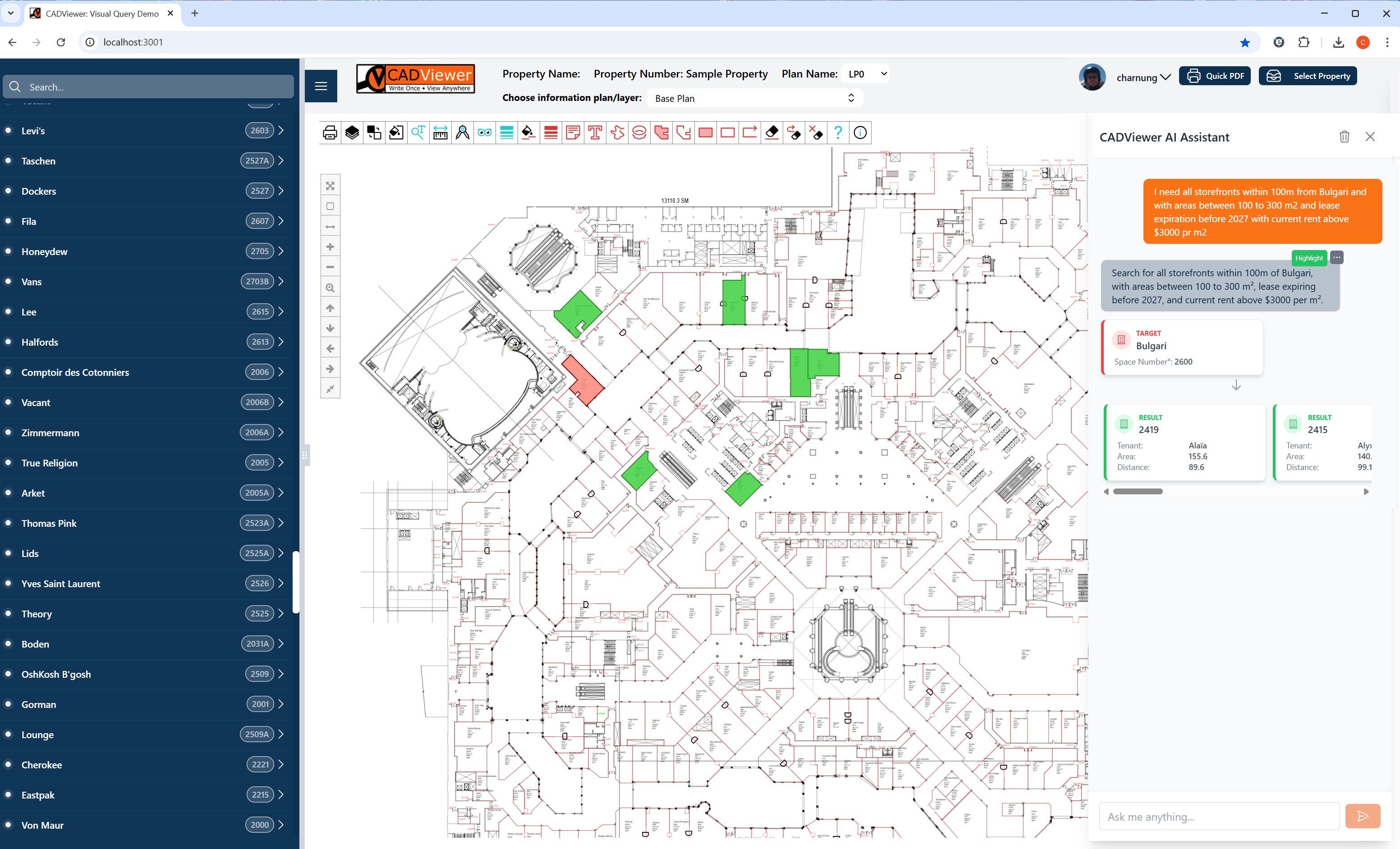

Sample of a query on a Real Estate Commercial Mall floorplan which involves distances, areas, lease and rent: "I need all Stores within 100m from Bulgari between 100 and 300m2 and with lease expiration before 2027 where the current rent is above $3000 per m2"
For More Details
Please contact us on: Contact Information
Please Register and test the online CADViewer Demo with CADViewer AI.
